Handheld Clamp Meter LCD Display Digital Clamp Multimeter Clamp Type Universal Meter Ammeter AC/DC Voltage Meters Testers

<p>Wide Measuring Range: 400A AC current(F302+) / 600A AC current(F303) / 999.9A AC current(F305), 600V DC/AC voltage, and 400.0/4000 resistance.</p><p>Multi-purpose Clamp Meter: for measuring AC Current, AC/DC Voltage, and Resistance.</p><p>Digital LCD Display: with backlight ON/OFF switchable for display data clearly in the low lit conditions.</p><p>User-friendly Design: jaw opening of 30mm to measure current without touching or interrupting the circuit.</p><p>Low Power Consumption: powered by 2*1.5V AAA battery (NOT included), convenient to operate.</p>

• Handheld Clamp Meter Lcd Display Digital Clamp, Clamp Meters, Electrical Instruments, Measurement & Analysis Instruments

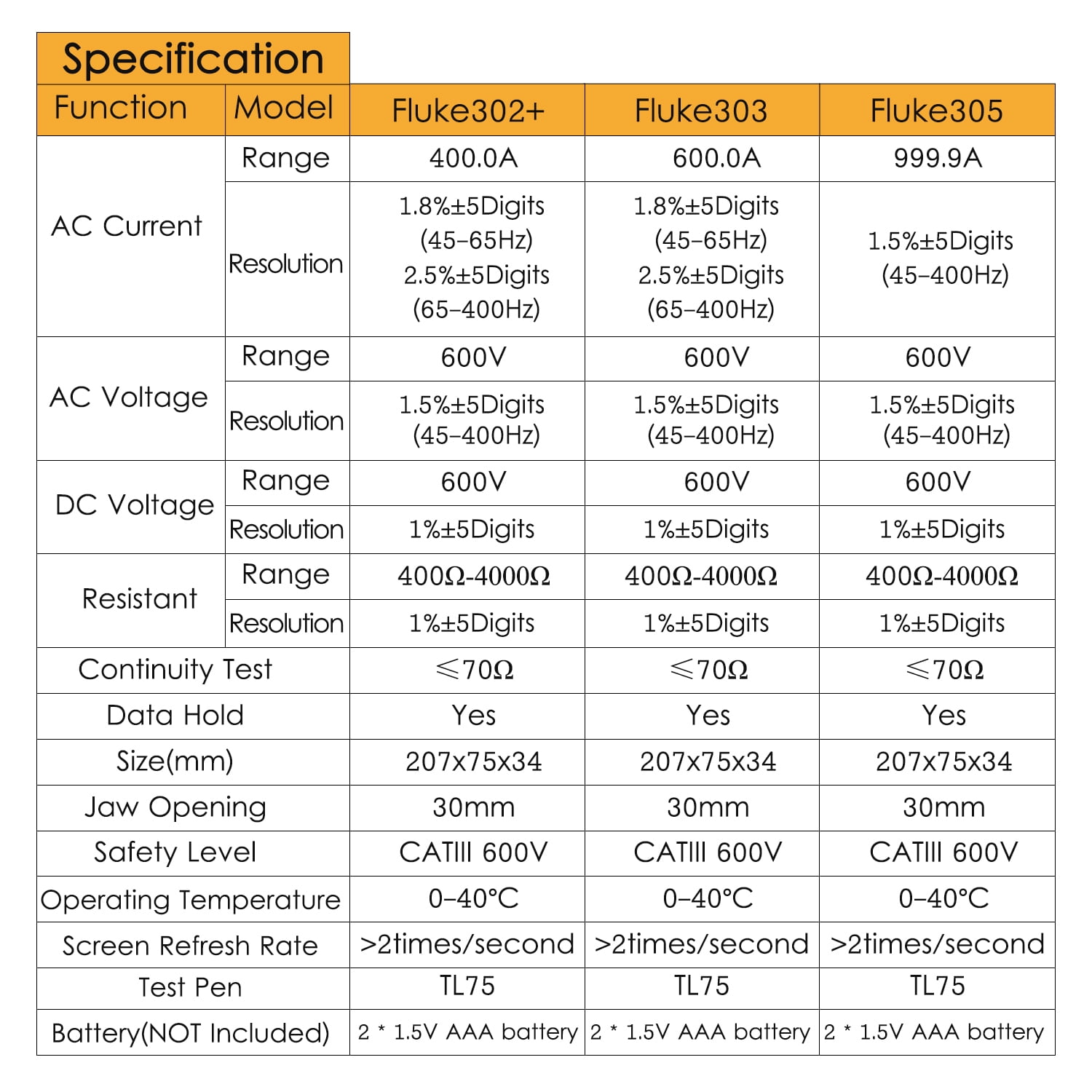

• Specifications:
• Model: F302+
• Material: ABS
• Color: Orange+red
• AC CURRENT(JAW):
• Range: 400.0A(F302+) / 600.0A(F303) / 999.9A(F305)
• Resolution: 0.1A
• Accuracy:
• F302+ & F303 18%±5 digits (45~65Hz), 2.5%±5 digits (65~400Hz)
• F303: 1.5%±5 digits (45~400Hz)
• AC VOLTAGE:
• Range: 600.0V
• Resolution: 0.1V
• Accuracy: 1.5%±5 digits (45~400Hz)
• DC VOLTAGE:
• Range: 600.0V
• Resolution: 0.1V
• Accuracy: 1%±5 digits
• RESISTANCE:
• Range: 400.0/4000
• Resolution: 0.1/1
• Accuracy: 1%±5 digits
• Continuity Beeper: 70
• Operating Temperature: 0~40
• Storage Temperature: -30~60
• Operating Humidity:
• Non condensing: <10
• 90%RH (at 10~30)
• 75%RH (at 30~40)
• Operating Altitude: 2,000 meters
• Storage Altitude: 12,000 meters
• Safety Rating: 600V CAT III
• Jaw Opening: 30mm
• Power Supply: 2 * 1.5V AAA battery (NOT included)
• Item Size: 207 * 75 * 34mm / 8.15 * 2.95 * 1.34in
• Item Weight: 327g / 11.54oz
• Package Weight: 449g / 15.86oz
• Package Size: 25 * 10 * 4.8cm / 9.84 * 3.94 * 1.89in

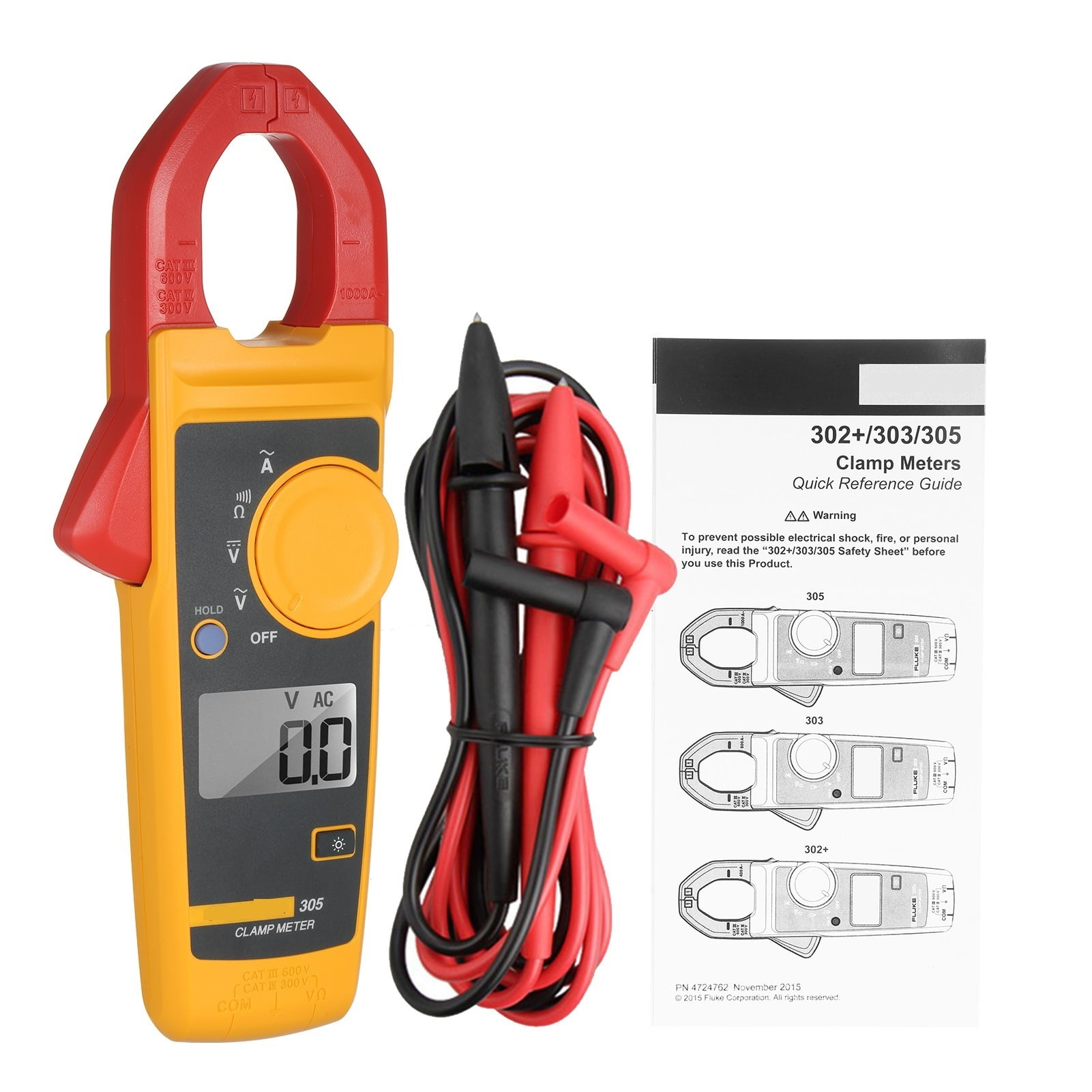

• Packing List:
• 1 * Clamp Meter
• 1 * Pair of Test Leads
• 1 * Manual (English)
